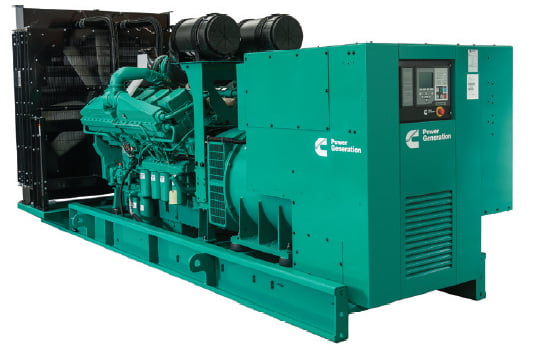

Cummins KTA38 Series Diesel Generator Sets

Overview

This Cummins® Power Generation commercial generator set is a fully integrated power generation system, providing optimum performance, reliability, and versatility for stationary standby, prime power, and continuous duty applications.

  • Cummins heavy-duty engine – Rugged 4-cycle industrial diesel delivers reliable power, low emissions and fast response to load changes.
  • Permanent magnet generator (PMG) – Offers enhanced motor starting and fault clearing short circuit capability.
  • Alternator – Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings; low waveform distortion with non-linear loads, fault clearing short-circuits capability, and class H insulation.
  • Cooling system – Standard integral set mounted radiator system, designed and tested for rated ambient temperatures, simplifies facility design requirements for rejected heat.
  • Control system – Standard PowerCommand® electronic control provides total system integration including remote start/stop, precise frequency and voltage regulation, alarm and status message display, AmpSentry protection, output metering, auto-shutdown.
  • Enclosures – Optional containerized version available.
  • Warranty and service – Backed by a comprehensive warranty and worldwide distributor network.

With this you can also explore different Cummins Generator before you buy any other generator set.

Specifications

Governor regulation class ISO 8528 G3* Voltage regulation, no load to full load ± 0.5% Random voltage variation ± 0.5% Frequency regulation Isochronous Random frequency variation ± 0.25% EMS compatibility EN61000-6-4/EN 61000-6-2.
Design 4 cycle, in-line, turbo charged and after cooled Bore 159 mm (6.25 in.) Stroke 159 mm (6.25 in.) Displacement 38 L (2300 in3 ) Cylinder block 12 cylinder vee formation, direct injection, four-cycle diesel engine Battery capacity 890 amps at ambient temperature 32 °F (0 °C) Battery charging alternator 55 amps Starting voltage 24 volt, negative ground Fuel system Direct injection Fuel filter Dual spin on paper element fuel filters with standard water separator Air cleaner type Dry replaceable element Lube oil filter type(s) Spin-on paper element full flow and bypass lube oil filters Standard cooling system 104 ºF (40 ºC) ambient radiator.
Design Brushless, 4 pole, drip-proof revolving field Stator 2/3 pitch Rotor Direct coupled by flexible disc Insulation system Class H Standard temperature rise 150 °C standby Exciter type PMG (permanent magnet generator) Phase rotation A (U), B (V), C (W) Alternator cooling Direct drive centrifugal blower fan AC waveform total harmonic distortion (THDV) No load <1.5%. Non distorting balanced linear load <5% Telephone influence factor (TIF) < 50% Telephone harmonic factor (THF) < 2%.

Models available in Cummins KTA38 Series:

Generator Model Frequency Standby Rating (kW / kVA) Prime (kW / kVa) Spec Sheet
C1000 D5 50 850 / 1000 810 / 900 SS14-CPGK
C1100 D5B 50 906 / 1133 823 / 1029 KTA38
C1100 D5B 50 906 / 1132 823 / 1029 KTA38
C1250 D5A 50 1000 / 1250 900 / 1125 EA_S_CC_39_EN
C1000 D6B 60 1020 / 1276 928 / 1160 SS15-CPGK
