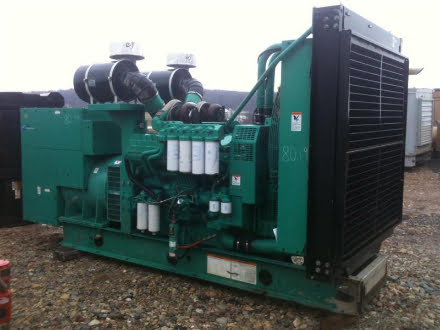

Cummins QST30 Series Diesel Generator Sets

Overview

This Cummins Power Generation commercial generator set is a fully integrated power generation system, providing optimum performance, reliability, and versatility for stationary standby, prime power, and continuous duty applications.

  • Cummins® heavy-duty engine – Rugged 4-cycle industrial diesel delivers reliable power, low emissions and fast response to load changes.
  • Permanent magnet generator (PMG) – Offers enhanced motor starting and fault clearing short circuit capability.
  • Alternator – Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings; low waveform distortion with non-linear loads, fault clearing short-circuits capability, and class H insulation.
  • Cooling system – Standard integral set mounted radiator system, designed and tested for rated ambient temperatures, simplifies facility design requirements for rejected heat.
  • Control system – Standard PowerCommand® electronic control provides total system integration including remote start/stop, precise frequency and voltage regulation, alarm and status message display, AmpSentry protection, output metering, auto-shutdown.
  • Enclosures – Optional weather-protective and sound-attenuated enclosures are available.
  • Warranty and service – Backed by a comprehensive warranty and worldwide distributor network.
  • Motorized circuit breaker – Optional 3 or 4 pole motorized circuit breaker available.

With this you can also explore different Cummins Generator before you buy any other generator set.

Specifications

Governor regulation class ISO 8528 G1 Voltage regulation, no load to full load ± 0.5% Random voltage variation ± 0.5% Frequency regulation Isochronous Random frequency variation ± 0.25% EMS compatibility EN61000-6-4/EN 61000-6-2.
Design 4 cycle, in-line, turbo charged and charge air cooled – C1100 D5/C1000 D6 4 cycle, in-line, turbo charged and after cooled – C1000 D5/C900 D6 Bore 140 mm (5.51 in.) Stroke 165.1 mm (6.5 in.) Displacement 30.5 L (1860 in3 ) Cylinder block Cast iron, 50° V 12 cylinder Battery capacity 1280 amps at ambient temperature 32 °F (0 °C) Battery charging alternator 35 amps Starting voltage 24 volt, negative ground Fuel system Direct injection Fuel filter Spin on fuel filters with water separator Air cleaner type Dry replaceable element with restriction indicator Lube oil filter type(s) Four spin-on full flow, two bypass oil filters Standard cooling system 104 ºF (40 ºC) ambient radiator.
Design Brushless, 4 pole, drip-proof revolving field Stator 2/3 pitch Rotor Direct coupled by flexible disc Insulation system Class H Standard temperature rise 150 °C standby Exciter type PMG (permanent magnet generator) Phase rotation A (U), B (V), C (W) Alternator cooling Direct drive centrifugal blower fan AC waveform total harmonic distortion (THDV) No load <1.5%. Non distorting balanced linear load <5% Telephone influence factor (TIF) < 50% Telephone harmonic factor (THF) < 2%.

Models available in Cummins QST30 Series:

Generator Model Frequency Standby Rating (kW / kVA) Prime (kW / kVa) Spec Sheet
DQFAA 60 750 / 938 680 / 850 S-1508
DQFAE 60 750 / 938 680 / 850 S-1671
DQFAB 60 800 / 1000 725 / 906 S-1508
DQFAF 60 800 / 1000 725 / 906 S-1671
C1000 D5 50 833 / 1041 751 / 939 SS14-CPGK
C1100 D5 50 888 / 1110 800 / 1000 SS14-CPGK
DQFAC 60 900 / 1125 818 / 1023 S-1508
DQFAG 60 900 / 1125 818 / 1023 S-1671
C900 D6 60 925 / 1156 835 / 1044 SS14-CPGK
DQFAD 60 1000 / 1250 900 / 1125 S-1508
DQFAH 60 1000 / 1250 900 / 1125 S-1671
C1000D6RG 60 1000 / 1250 900 / 1125 S-1554
C1000 D6 60 1012 / 1265 920 / 1150 SS14-CPGK
C2000D6RG 60 2000 / 2500 1800 / 2250 NAS-5511-EN
C2000D6R 60 2000 / 2500 1825 / 2281 NAS-5511-EN
