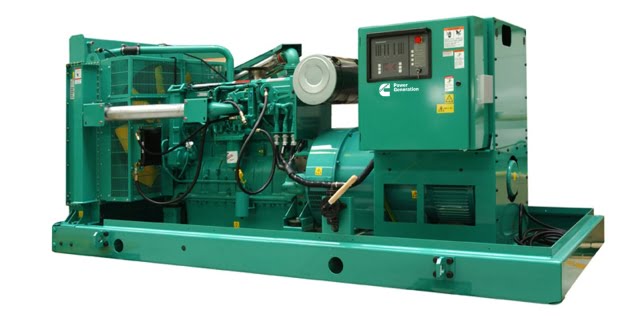

Cummins QSX15 Diesel Generator Series Sets

Overview

This Cummins® Power Generation commercial generator set is a fully integrated power generation system, providing optimum performance, reliability, and versatility for stationary standby and prime power.

  • Cummins® heavy-duty engine – Rugged 4-cycle industrial diesel delivers reliable power, low emissions and fast response to load changes.
  • Optional permanent magnet generator (PMG) – Offers enhanced motor starting and fault clearing short-circuit capability. Alternator – Low reactance 2/3 pitch windings; low waveform distortion with non-linear loads, fault clearing short-circuits capability, and class H insulation.
  • Cooling system – Standard integral set mounted radiator system, designed and tested for rated ambient temperatures, simplifies facility design requirements for rejected heat.
  • Control system – The PowerCommand® electronic control is standard equipment and provides total genset system integration, including auto remote start/stop, precise frequency and voltage regulation, alarm and status message display, AmpSentry protection and output metering.
  • Enclosures – Optional weather-protective and sound attenuated enclosures.
  • Warranty – Backed by a comprehensive warranty and Worldwide distributor network.

With this you can also explore different Cummins Generator before you buy any other generator set with problems.

Specifications

Governor regulation class ISO 8528 G3 Voltage regulation, no load to full load +/- 1% Random voltage variation +/- 1% Frequency regulation Isochronous Random frequency variation +/- 0.25% Radio frequency emissions compliance BS EN 61000-6-2:2005/BS EN 61000-6-3:2007.
Design 4 cycle, in-line, turbo charged, charge air cooled Bore 137 mm (5.39 in.) Stroke 169 mm (6.65 in.) Displacement 15 liter (912 in3 ) Cylinder block Cast iron, 6 cylinder Battery capacity 100 AH Battery charging alternator 35 amps Starting voltage 24 volt, negative ground Fuel system Direct injection Fuel filter Spin on fuel filters with water separator Air cleaner type Dry replaceable element with restriction indicator Lube oil filter type(s) Spin on full flow filter Standard cooling system 122 °F (50 °C) ambient radiator.
Design Brushless, single bearing, revolving field Stator 2/3 pitch Rotor Single bearing, flexible disc Insulation system Class H Standard temperature rise Standby 125-163 °C Exciter type Self excited (PMG optional) Phase rotation A (U), B (V), C (W) Alternator cooling Direct drive centrifugal blower fan AC waveform total harmonic distortion (THDV) No load < 1.5%. Non distorting balanced linear load < 5% Telephone influence factor (TIF) < 50 per NEMA MG1 Telephone harmonic factor (THF) < 2%

Models available in Cummins QSX15 Generator Series For Sale:

Generator Model Frequency Standby Rating (kW / kVA) Prime (kW / kVa) Spec Sheet
C400 D5e 50 320 / 400 291 / 364 SS11-CPGK
C450 D5e 50 360 / 450 327 / 409 SS11-CPGK
C500 D5 50 400 / 500 364 / 455 EA_S_CC_16_EN
C500 D5 50 400 / 500 360 / 450 EA_S_CC_16_EN
C500 D5e 50 400 / 500 364 / 455 SS11-CPGK
C550 D5 50 440 / 550 400 / 500 EA_S_CC_17_EN
C550 D5 50 440 / 550 400 / 500 EA_S_CC_17_EN
C550 D5e 50 440 / 550 400 / 500 SS11-CPGK
DFEJ 60 450 / 563 410 / 513 S-1582
C450 D6e 60 450 / 562 409 / 511 SS11-CPGK
C450D6 60 450 / 563 410 / 513 C450D6_EN
C500 D6e 60 500 / 625 455 / 568 SS11-CPGK
C500D6 60 500 / 625 455 / 569 C500D6_EN
DFEK 60 500 / 625 455 / 569 S-1582
C500D6RG 60 500 / 625 455 / 569 S-1279
